Audi RS3 S3 A3 8P Golf Mk5 Mk6 R32 Scirocco front tubular lightweight subframe

5.376,00 zł

Price includes 23% VAT

SKU: WAS-550

EAN: 5901138352274

VERKLINE WAS-550 Front Tubular Subframe - PQ35 Platform (2003-2017)

Audi A3/S3/RS3 8P, VW Golf Mk5 Mk6 R32, VW Scirocco, SEAT Leon, Skoda Octavia, and 12 other PQ35 platform vehicles - Complete front subframe replacement

The VERKLINE WAS-550 is a T45 seamless steel tubular front subframe designed for all Volkswagen Group PQ35 platform vehicles (2003-2017) that replaces the factory stamped steel subframe, providing 40% weight reduction (6 kg vs 10 kg OEM) with significantly higher torsional rigidity. It is the only PQ35 aftermarket subframe that includes a second, higher wishbone mounting point for corrected suspension kinematics on lowered cars, and one fixed mounting position that eliminates subframe shifting entirely.

Continuously revised since its initial development, the WAS-550 has recorded zero fitment complaints since a complete FEA-validated structural redesign in 2022. T45 tubing delivers 700-900 MPa tensile strength - exceeding Chromoly 4130 - and is the same material specified for FIA-homologated roll cages. The subframe ships as a complete bolt-on kit with integrated polyurethane dogbone mount, mounting brackets, and all hardware with specified torque values. CRITICAL: Some pre-2008 PQ35 vehicles may require Gen3 steering rack upgrade before installation (see Important Notes section).

The OEM subframe problem - chassis compliance you can't tune out

The PQ35 platform subframe is a stamped sheet metal component designed for cost-effective mass production - not for consistent suspension geometry under load. Every suspension pickup point lives on this subframe. When it deflects, your carefully set camber, caster, toe and roll centre geometry shifts mid-corner. No spring rate, damper setting or alignment change can compensate for a subframe that moves - because the problem sits below the suspension, not within it.

Structural compliance

Geometry shifts under load

Stamped sheet metal subframes deflect under cornering and braking loads. This changes the position of suspension pickup points dynamically - your instant centres, roll centre height, and side view swing arm geometry all shift mid-corner. The result: inconsistent steering response, unpredictable weight transfer, and anti-dive behaviour that changes with every chassis flex. These are kinematics problems that springs, dampers and anti-roll bars cannot fix.

Subframe shifting

Movement on chassis bolts

The OEM subframe can shift position relative to the body under hard use, requiring aftermarket locking kits as a partial fix. But even with collars, the subframe still flexes internally. The real problem is not the bolt connection - it is the subframe structure itself. A collar locks the position but does nothing for torsional rigidity.

Weight

10 kg of unoptimised mass

The steel OEM subframe weighs approximately 10 kg. It uses stamped sheet metal - a manufacturing method optimised for production volume, not strength-to-weight ratio. The weight sits low but it is still unsprung-adjacent mass that affects chassis response and adds inertia to the front axle.

Drivetrain compliance

Engine pitch under power

The OEM rubber dogbone mount allows excessive engine movement under acceleration and deceleration. This delays throttle response and introduces a variable into the longitudinal load transfer chain. The WAS-550 integrates a polyurethane dogbone mount directly into the subframe, eliminating the separate part entirely and providing consistent engine damping.

Poorly designed kinematics cannot be fixed by springs, bars or dampers (OptimumG). The subframe is the foundation - if it moves, everything above it is compromised. The WAS-550 replaces this foundation with a structure that does not deflect.

Product Highlights

40% Lighter Than OEM Steel - With Higher Rigidity

The WAS-550 weighs just 6 kg - saving 4 kg over the steel PQ35 subframe. That is a 40% weight reduction. The savings come from T45 seamless tubular construction - the same aerospace-grade carbon manganese steel specified for FIA-homologated roll cages. T45 delivers minimum 620 MPa yield strength and 700-900 MPa tensile strength - exceeding Chromoly 4130 tubing commonly used in aftermarket motorsport fabrication. The result is a subframe that weighs less than two-fifths of the original while providing dramatically higher torsional rigidity.

Consistent Kinematics Under Load

The primary benefit of a tubular subframe is not weight - it is geometric consistency. Every suspension pickup point is held in a fixed position relative to the chassis, regardless of lateral, longitudinal, or combined loads. Your instant centres, roll centre heights, camber curves, and side view swing arm geometry remain where they were designed to be - throughout every phase of a corner, under braking, and on throttle. This means your alignment settings, your anti-dive behaviour, and your bump steer curves all work as intended, not as approximations that shift with every chassis flex.

One Fixed Mounting Position - Eliminates Subframe Shifting

The WAS-550 is mounted at one fixed point to the chassis, eliminating the subframe shifting that plagues the OEM design under hard use. No locking kit, no deadset collar, no secondary brace needed. The integrated polyurethane dogbone mount (red standard / black race) provides engine damping built directly into the subframe structure. The tubular open geometry enables wishbone replacement without subframe removal, and includes two xenon headlight sensor mounts as standard.

Continuously Revised Since Development - Zero Fitment Complaints Since 2022

The WAS-550 you receive today is the latest production revision. In 2022, VERKLINE undertook a complete structural redesign: all mounting point geometry re-engineered from 3D scans of production vehicles, new welding jigs with tighter tolerances, and comprehensive engineering validation for the full 17-year PQ35 platform span. Since that redesign: zero fitment-related complaints across the entire WAS-550/560/570 subframe family.

Exclusive feature

Corrected Suspension Kinematics for Lowered Cars

Most aftermarket subframes are a direct geometric copy of OEM. They bolt in at the same points, with the same wishbone mounting height. That means on a lowered car, the suspension geometry is still wrong. The WAS-550 is different: it includes a second, higher wishbone mounting point that no other PQ35 subframe on the market offers.

The problem with lowering

Lowering a car moves the chassis below the ball joint, causing the wishbone to angle upward at the wheel end. This raises the roll centre to an incorrect height, reduces camber gain in compression, and introduces bump steer. The car feels sluggish to turn in and requires more steering lock mid-corner. Every lowered PQ35 car running OEM or aftermarket subframes has this problem.

The WAS-550 + WAS-010/WAS-011 solution

The second mount point repositions the front wishbone inner pivot, restoring proper roll centre height, optimising camber gain through suspension travel, and correcting bump steer geometry. Pair the WAS-550 with VERKLINE WAS-010 or WAS-011 tubular wishbones to fully correct the kinematics of a lowered car.

Designed as a system with VERKLINE Adjustable Tubular Wishbones (WAS-010 / WAS-011)

Adjustable camber & caster

Set your geometry precisely for your ride height and driving style. Motorsport-grade adjustability.

Motorsport uniballs

Metal-to-metal spherical bearings - zero rubber compliance. Your alignment stays where you set it.

Better underbody access

Tubular design enables wishbone change without subframe removal - service advantage over stamped OEM.

The WAS-550 works perfectly with OEM wishbones. The second mount point is optional. But if you are running a lowered car on track, the WAS-010 or WAS-011 + WAS-550 combination is the only PQ35 subframe system that actually corrects the kinematics.

VERKLINE WAS-550 key specifications
Product weight	6 kg
Weight saving vs OEM steel	4 kg (40% lighter)
Material	T45 seamless carbon manganese steel (BS4T45)
Tensile strength	700-900 MPa
Yield strength	620 MPa minimum
Current revision	Latest production revision (continuously updated)
Platform compatibility	PQ35 2003-2017 (Audi A3 8P, VW Golf Mk5/Mk6, and 15 others)
Installation type	Bolt-on OEM replacement, no welding

Scope of Delivery

Main Components

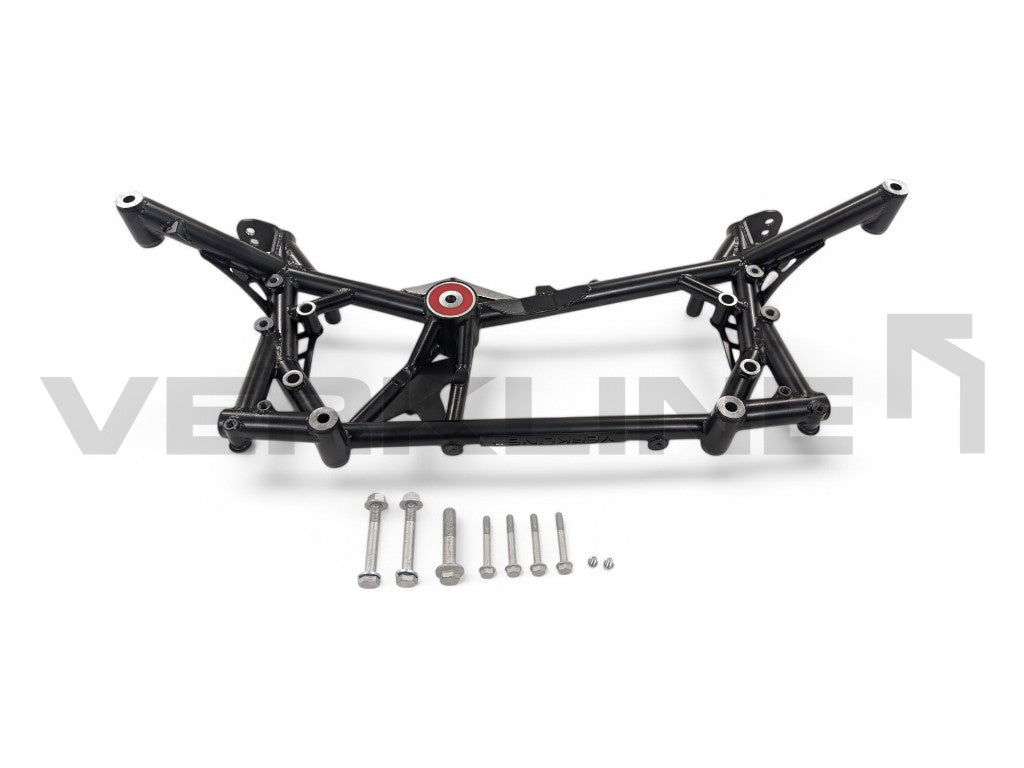

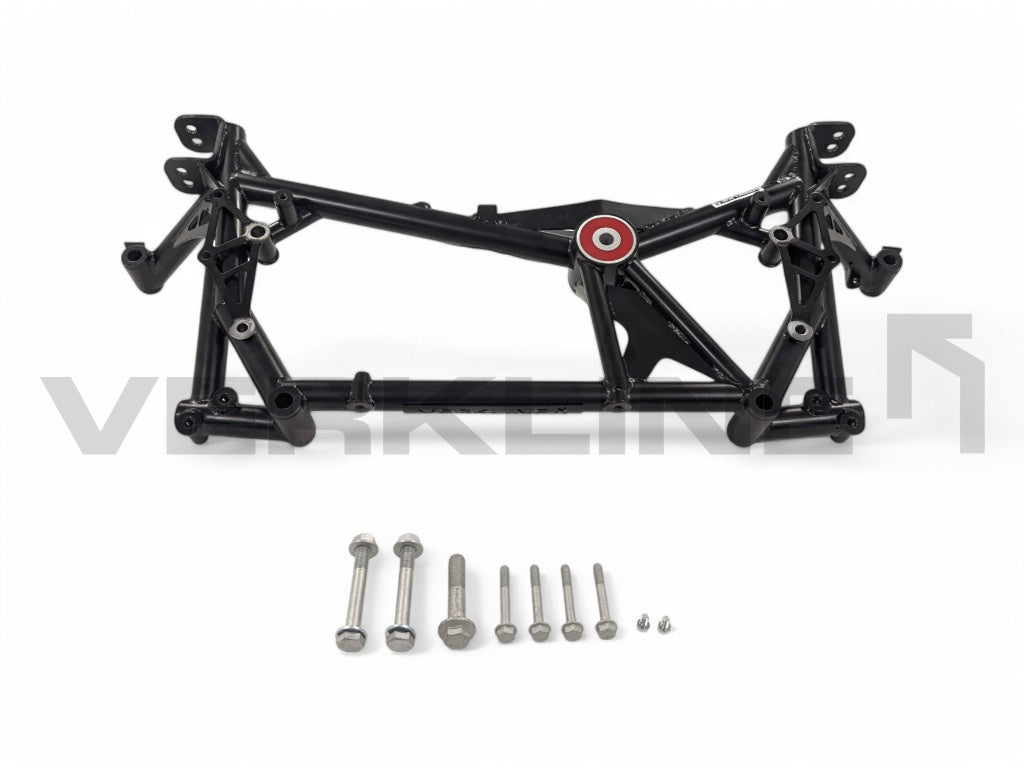

•1x Front tubular subframe WAS-550 (T45 seamless tubing, powder coated black, latest revision)

•1x Upper engine bushing

•1x Lower engine bushing

•1x Polyurethane dogbone mount (red standard / black race on request)

Complete Bolt Kit (included)

•4x Socket bolt M6x10

•4x Hex flange bolt M8x60 (20 Nm + 90 deg)

•1x Hex flange bolt M14x1.5x70 (100 Nm + 90 deg)

•2x Washer M12

•2x Bolt M12x1.5x90 (70 Nm + 180 deg)

•2x Hex flange nut M12x1.5 (70 Nm + 180 deg)

•Complete fastener set with all washers and spacers

•Torque specifications for every fastener

•Printed fitting instructions (rev I)

Compatible with: OEM wishbones (steel and aluminum), VERKLINE tubular wishbones (WAS-010, WAS-011), OEM undertray, OEM and aftermarket dogbone support arms

Second LCA mount position: Higher mount point included for corrected kinematics on lowered cars when paired with WAS-010 or WAS-011 wishbones.

Custom color: Any RAL powder coat color available on request (+50 EUR)

Installation

Bolt-on replacement - mounts to OEM chassis points, no cutting or welding required. The WAS-550 ships with comprehensive printed fitting instructions covering step-by-step installation with diagrams, exact torque specifications for every fastener (including angular tightening values), and a post-installation verification checklist. Professional lift installation by a qualified mechanic is strongly recommended. Recheck all connections after the first 100 km.

Important notes before ordering - CRITICAL FOR PQ35

Some pre-2008 PQ35 vehicles require a Gen3 steering rack upgrade before installing the WAS-550.

The PQ35 platform spans 2003-2017 and includes multiple steering rack generations. Gen1 and Gen2 rack variants do not clear the WAS-550 geometry. You must verify your steering rack generation before purchasing. If your car has an older rack, upgrade to Gen3 (harness part number 1K2 971 111 AJ) before fitting the subframe. This is more common on PQ35 than later MQB vehicles because of the platform's long production lifespan.

LHD and RHD: The subframe fits both left-hand drive and right-hand drive vehicles.

NVH: Tubular construction transmits more noise, vibration, and harshness into the cabin compared to the OEM stamped subframe. This is inherent to the design and is the trade-off for higher rigidity and lower weight.

OEM steel wishbones on lowered cars: If using standard OEM steel wishbones on a significantly lowered car, it may be necessary to shim approximately 2 mm off the wishbone over a 10 mm length. This is not required with OEM aluminum wishbones or VERKLINE tubular wishbones.

OEM part replaced: 1K0 199 313 AL (and variants 1K0 199 313 G, H, J, N, S, Q)

Incompatible arms: The WAS-550 does not work with Whiteline or SuperPro front lower control arms - they are wider than OEM specification and do not fit within the subframe brackets.

Vehicle Compatibility - PQ35 Platform (2003-2017)

Audi

•A3 / S3 Mk2 (8P - 2004-2013)

•RS3 (8P - 2011-2013)

Volkswagen

•Golf Mk5 (1K - 2003-2007) GTI / R32

•Golf Mk6 (5K - 2008-2014) GTI / R

•Scirocco (13 - 2009-2017)

•Jetta Mk5 (1K - 2005-2010)

•Jetta Mk6 (2010-2018)

•Touran (1T - 2003-2015)

•Caddy (2K - 2004-2017)

•Beetle (A5/16 - 2012-2017)

•Eos (2009-2016)

•Golf Plus (5M - 2008-2014)

SEAT

•Leon Mk2 (1P - 2006-2013)

•Altea (5P - 2007-2015)

•Toledo Mk3 (5P - 2005-2009)

Skoda

•Octavia Mk2 (1Z - 2004-2013)

•Yeti (5L - 2010-2013)

•Superb (2008-2013)

Note on Gen3 steering rack: Verify your vehicle's steering rack generation before ordering, especially for pre-2008 models. Older gen racks require upgrade to Gen3 (part 1K2 971 111 AJ).

Material & Technical Specification

T45 Seamless Carbon Manganese Steel Tubing (BS4T45 to BS4T100) - imported from the UK. T45 conforms to full British Aerospace Specification and is used across motorsport (FIA roll cages, WRC) and aerospace (pilot seats rated for high-G loading). It is stronger than Chromoly 4130 tubing commonly used in aftermarket fabrication. S355 structural steel sheets used for mounting plates and brackets.

Tensile Strength

700-900 MPa

0.2% Yield Strength

620 MPa min

Hardness

201-262 HB

All joints TIG welded by certified welders following documented welding instruction procedures (revisioned document). Delivered powder coated black (or custom RAL color on request).

Engineering Evolution: Continuously Refined

The WAS-550 front tubular subframe you receive today is the latest production revision. The entire VERKLINE front subframe family - including the WAS-550 (PQ35), WAS-560 (Audi TT 8J), and WAS-570 (MQB) - went through a comprehensive 2022 redesign cycle, representing thousands of hours of CAD, FEA simulation, and real-world validation across 30+ countries.

Why Revision Letters Matter

VERKLINE marks every product revision with a sequential letter. Each revision means the product has been refined based on specific findings - whether from customer feedback, installation data, or internal testing. A high revision letter is a direct indicator of product maturity. It means the part has been validated under real conditions, refined based on measurable data, and improved where it counts. You always receive the latest production revision.

The 2022 Redesign - Built for Slick Tyre Loads and Full Platform Span

The challenge with PQ35 is greater than other platforms because it spans 14 years (2003-2017) with significant evolution in steering rack geometry, suspension pickup points, and manufacturing tolerances. The original WAS-550 design was strong enough for road tyres and semi-slick use, but feedback from hardcore track users running full slick tyres on prepared surfaces showed that the dogbone mounting area and wishbone brackets required optimization for extreme force loads.

VERKLINE collected real-world data from these track users and in 2022 executed a complete redesign. The full design was re-developed using FEA (Finite Element Analysis) to handle slick tyre loads across the entire operating envelope. All mounting point geometry was re-engineered from 3D scans of production vehicles across the entire 2003-2017 range for precise fitment without hole enlargement or shimming. Both the dogbone mount and LCA brackets were completely re-engineered with new geometry and reinforced load paths.

Since the 2022 redesign, VERKLINE has received zero fitment-related complaints and zero structural issues across the entire WAS-550/560/570 subframe family. The current production versions represent the most refined designs ever produced.

What Changed in the 2022 Redesign

Dogbone mount - redesigned

Entirely new mounting structure with reinforced load paths. Designed through FEA to withstand peak engine torque reaction and longitudinal forces generated by slick tyres under hard braking and acceleration.

LCA brackets - redesigned

Wishbone mounting area completely re-engineered for sustained high lateral loads on circuit. New geometry optimised across full PQ35 platform range.

Mounting points from 3D scans

All chassis mounting holes re-engineered from 3D scans of PQ35 vehicles (2003-2017) for precise alignment without hole enlargement or shimming across all production years.

Steering rack interference tested

Comprehensive testing across early, mid, and late-production PQ35 vehicles with multiple rack generations. Compatibility documented.

Frequently Asked Questions

Does WAS-550 require Gen3 steering rack upgrade?

CRITICAL: Some pre-2008 PQ35 vehicles have Gen1 or Gen2 steering rack variants that may not clear the WAS-550. You MUST verify your steering rack generation before installation. If your car has an older generation rack, upgrade to Gen3 (harness part number 1K2 971 111 AJ) before fitting the subframe. This is more common on PQ35 than MQB because the PQ35 spans 2003-2017 and early cars have different specifications. Post-2008 PQ35 vehicles typically have compatible Gen3 racks.

How much weight does WAS-550 save over OEM?

The WAS-550 weighs 6 kg - saving 4 kg (40%) compared to the steel PQ35 subframe. T45 tubular construction provides higher rigidity at less than two-fifths of the original weight.

Can I use OEM wishbones with WAS-550?

Yes. The WAS-550 is fully compatible with OEM steel and aluminum wishbones. The second mount point for corrected kinematics is optional and designed to work with VERKLINE WAS-010 or WAS-011 tubular wishbones on lowered cars, but is not required. Standard OEM installation uses the primary mount point exclusively.

What PQ35 cars does WAS-550 fit?

The WAS-550 fits all Volkswagen Group PQ35 platform vehicles from 2003-2017: Audi A3/S3/RS3 8P, VW Golf Mk5/Mk6, VW Scirocco, VW Jetta, VW Touran, VW Caddy, SEAT Leon/Altea/Toledo, Skoda Octavia/Yeti/Superb, VW Beetle, VW Eos, and VW Golf Plus. See full compatibility list below.

What is the difference between WAS-550, WAS-560, and WAS-570?

WAS-550 is for PQ35 platform (2003-2017: A3 8P, Golf Mk5-Mk6, Scirocco). WAS-560 is for Audi TT/TTRS 8J (2006-2015). WAS-570 is for MQB (2012+: A3 8V, Golf Mk7, etc). All three use identical design philosophy - T45 steel, integrated dogbone, continuous revision. Platform differences require different mounting geometry.

Is WAS-550 compatible with lowered cars?

Yes. The WAS-550 includes a second, higher wishbone mounting point for corrected suspension kinematics on lowered cars when paired with VERKLINE WAS-010 or WAS-011 tubular wishbones. On standard ride height or with OEM wishbones, the primary mount point is used. The second mount point is optional and exclusive to VERKLINE subframes.

What is T45 steel?

T45 is seamless carbon manganese steel tubing (BS4T45) delivering 700-900 MPa tensile and 620 MPa minimum yield strength - stronger than Chromoly 4130 commonly used in aftermarket fabrication. It is specified for FIA-homologated roll cages and used in WRC and aerospace applications. VERKLINE sources UK-manufactured T45 for all tubular subframes.

How has the VERKLINE PQ35 subframe evolved?

The WAS-550 underwent complete FEA-driven structural redesign in 2022 - not a reinforcement but an entirely new design. All mounting point geometry re-scanned from production vehicles across the full 2003-2017 PQ35 range for precise fitment. Dogbone mount and LCA brackets completely re-engineered for slick tyre loads. Since 2022: zero fitment complaints across WAS-550/560/570 family.
